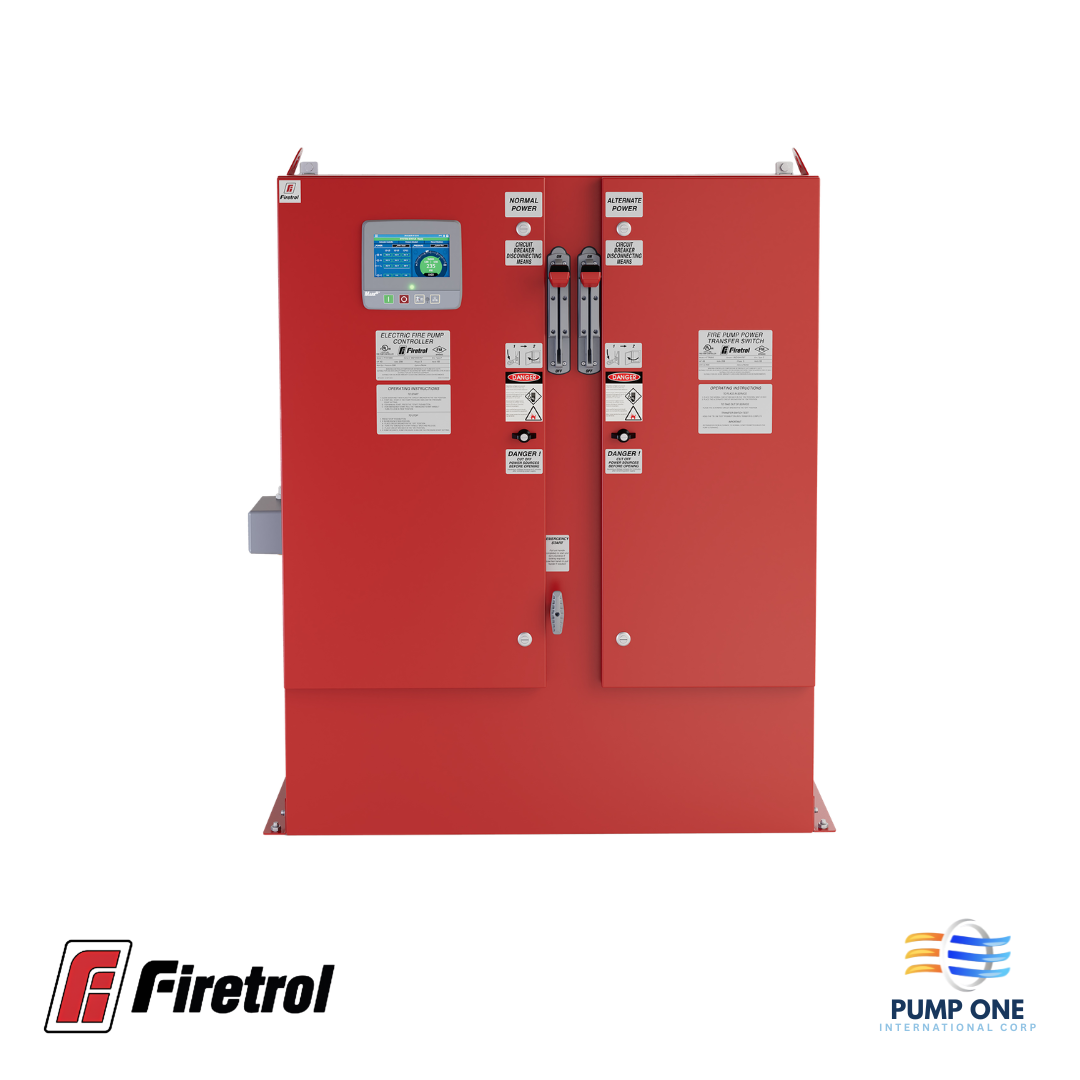

Firetrol FTA1930 Digital Solid State Starting Fire Pump Controller

Model: FTA1930 (MarkIII+)

Firetrol® FTA1930 Digital Solid State Starting Fire Pump Controllers feature system sensing capabilities that not only provide for reduced current starting, but also offer an improved level of hydro mechanical performance. The controller monitors, displays and records fire pump system information. This controller helps to reduce water hammer in the system.

Email Inquiry Call Us

Specifications

Voltage (VAC)	200–600 VAC
Horsepower Range (HP)	30–900 HP
Frequency (Hz)	50/60 Hz
Starting Method	Soft Starter (Solid State)
Listing / Approval	UL Listed / FM Approved
Brand Model Series	Firetrol FTA1930 (Mark III+)

Product Description

Controller Features:
• Disconnect Switch / Circuit Breaker
• Soft Starter with Bypass
• Door Mounted Interface
• Weekly Test Timer
• Data Logging
• True RMS Metering
