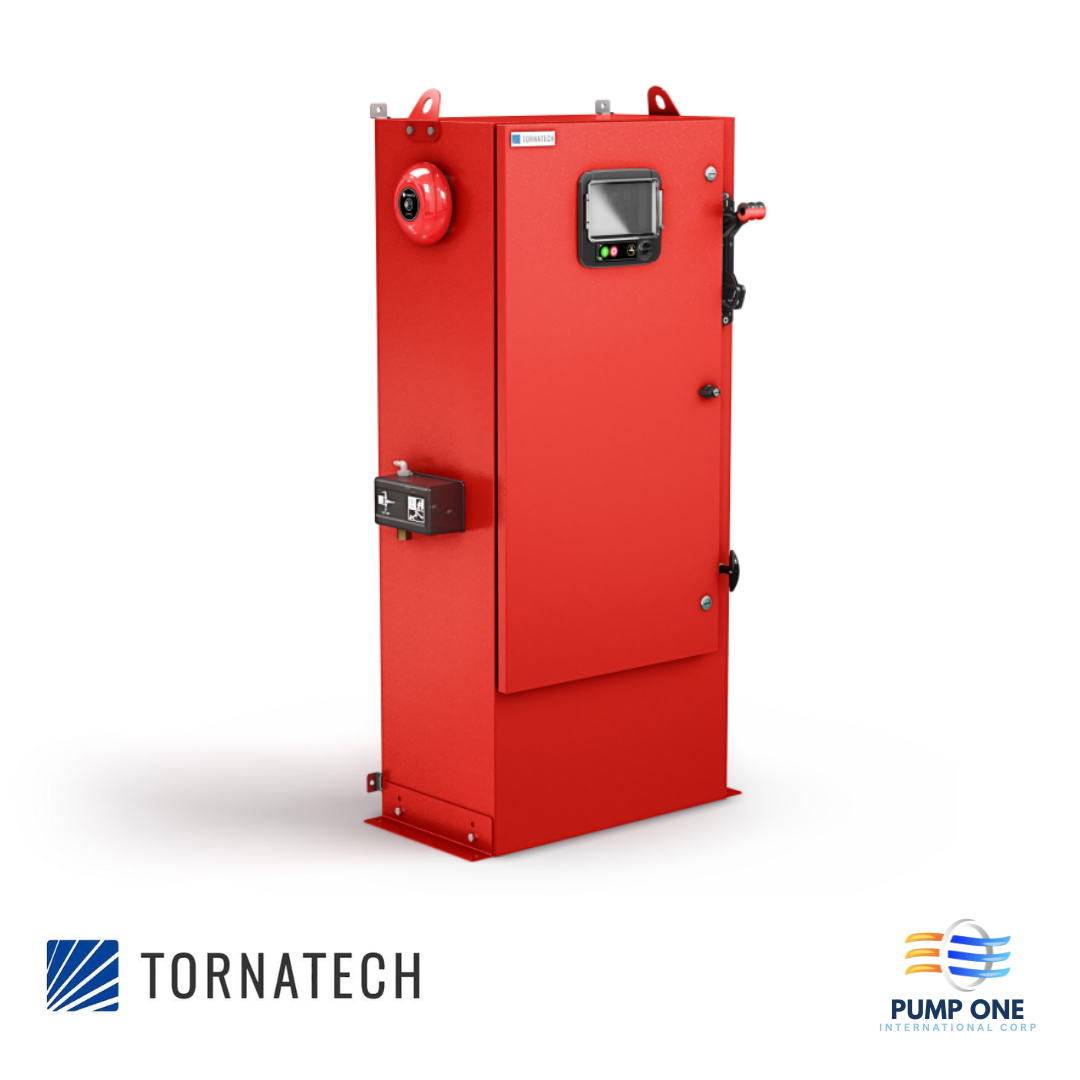

Tornatech GPY Electric Fire Pump Controller

Model: GPY

The Tornatech GPY is the wye-delta open transition starting variant of the GPx full-service electric fire pump controller family, reducing inrush current at start-up.

Email Inquiry Call Us

Specifications

Voltage (VAC)	200-600
Horsepower Range (HP)	Up to 4500 depending on voltage class
Frequency (Hz)	50/60 Hz
Starting Method	Wye-Delta (Open Transition)
Listing / Approval	UL Listed / FM Approved
Enclosure Rating	NEMA 2 (Drip-proof)
Brand Model Series	Tornatech GPx (GPY)

Product Description

Benefits/Features
• ViZiTouch 2.1 touch screen operator interface with 7” color display, multi-language support, and password protection
• Pressure and event recorder with on-screen history, statistics, and pump/pressure curve logging
• Voltage and amperage display on all three phases from the home screen
• Single operator handle for both isolating switch and circuit breaker, with key lock
• Externally mounted pressure transducer and run test solenoid valve with protective cover
• Emergency start handle, locked rotor protector, and phase reversal indication
• Remote start / deluge valve start provision with alarm contacts for remote indication
• Surge arrestor, lifting lugs, and alarm buzzer standard; available with automatic power transfer switch
