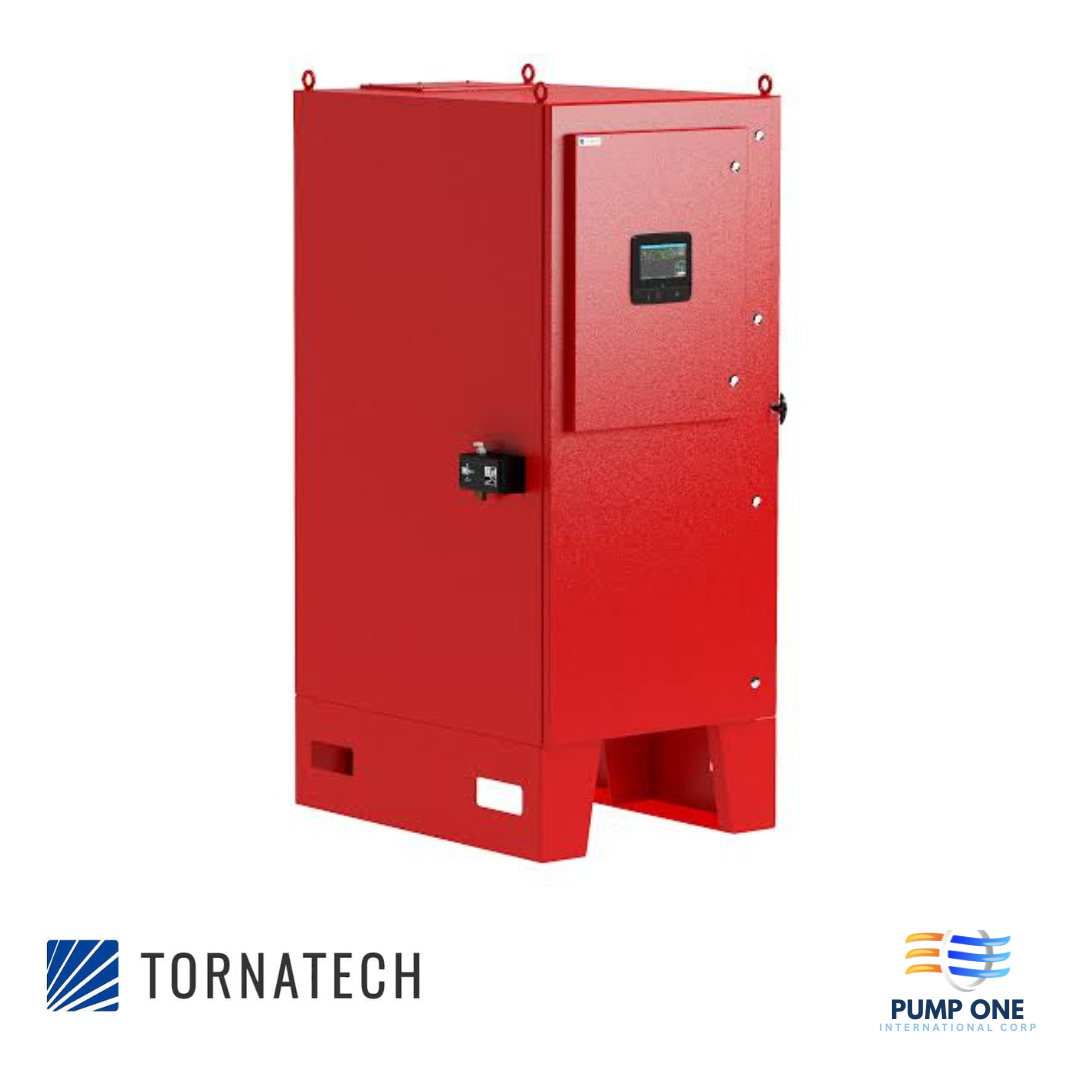

Tornatech MPA Medium Voltage Fire Pump Controller

Model: MPA

The Tornatech MPA is a medium voltage electric fire pump controller for 2200V to 6900V systems, using a vacuum contactor and step-down control transformer with the ViZiTouch 2.1 interface.

Email Inquiry Call Us

Specifications

Voltage (VAC)	2200-6900
Horsepower Range (HP)	100-4000
Frequency (Hz)	50/60 Hz
Starting Method	Across-the-Line (Full Voltage)
Includes Transfer Switch	No
Listing / Approval	UL Listed / FM Approved
Enclosure Rating	NEMA 2 (Drip-proof)
Brand Model Series	Tornatech MPA

Product Description

Benefits/Features
• ViZiTouch 2.1 touch screen operator interface with 7” color display, multi-language support, and password protection
• Medium-to-low voltage step-down transformer, power fuses, and vacuum contactor in a dedicated power section
• Normal/test selector switch with a 220VAC connection for testing the control circuit independent of medium voltage power
• Removable alarm contacts, alarm buzzer, and pressure and event recorder
• Emergency start handle, locked rotor protector, and phase reversal indication
• Back, top, and bottom removable gland plates with inner protective covers for safe power and motor lead connections
• Spare set of fuses and lifting lugs included
• Covers 2200V to 6900V systems, 100 to 4000 HP depending on voltage class, with short circuit withstand rating up to 50kA
