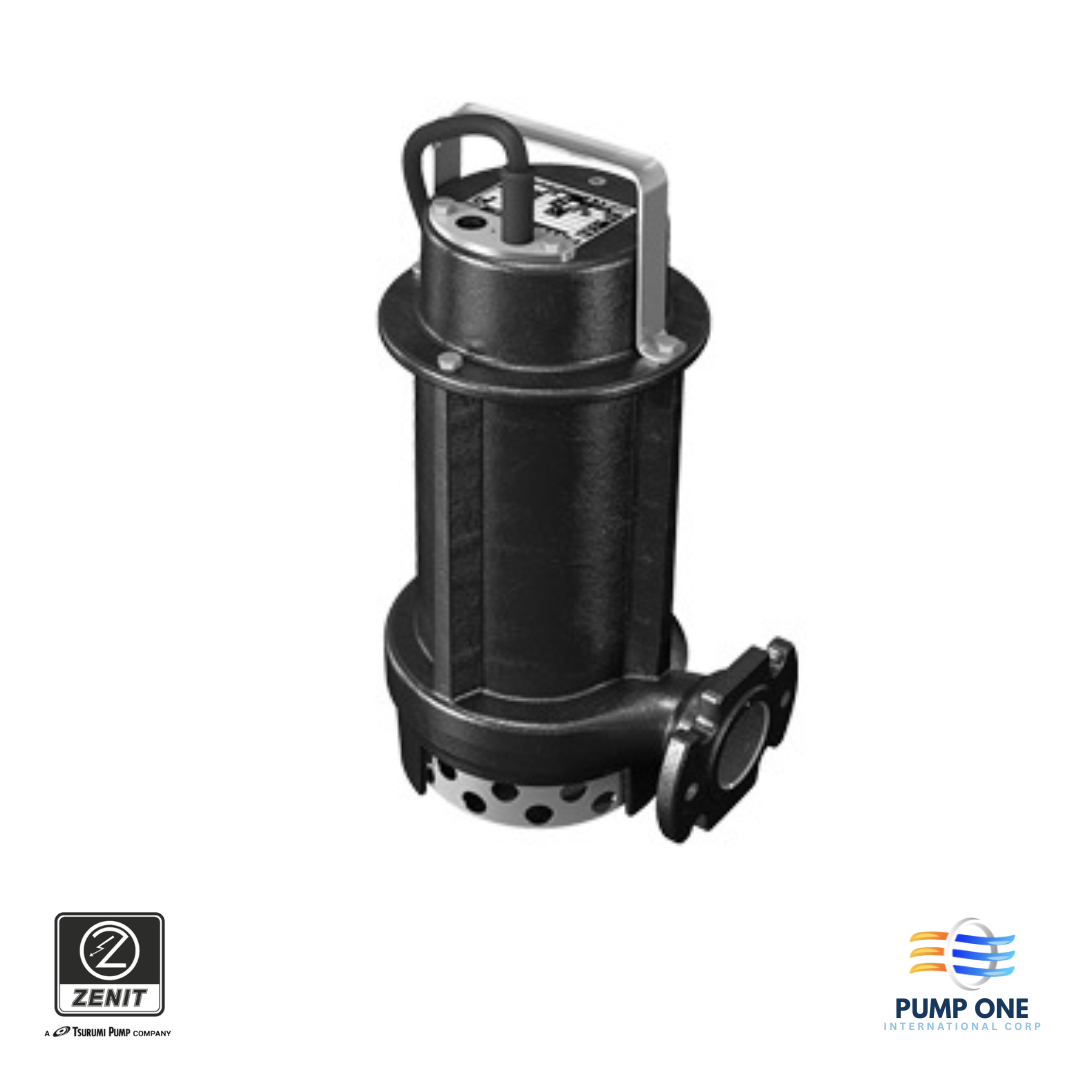

Zenit S Series APS Alta Prevalenza Electric Submersible Pump

The Zenit S Series APS Electric Submersible Pump is a compact high-head submersible pump designed for clean water and slightly sandy water applications requiring elevated discharge pressure. Equipped with a cast iron multi-channel open impeller, it is well suited for irrigation, fish farming, and general water transfer duties. Its compact dimensions make it ideal for installation in small lifting stations while maintaining dependable hydraulic performance and long service life.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 22.7
Max Head (m)	Min: 20.5
Motor Power (kW)	Min: 0.9
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	Min: 40
Liquid Type	Clean Water
Max Solid Size (mm)	Min: 7
Float Switch	Optional
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• High-head hydraulic design
• Cast iron multi-channel open impeller
• Heavy-duty cast iron construction
• Compact installation
• Pressure-tested construction
• Suitable for irrigation and water transfer
