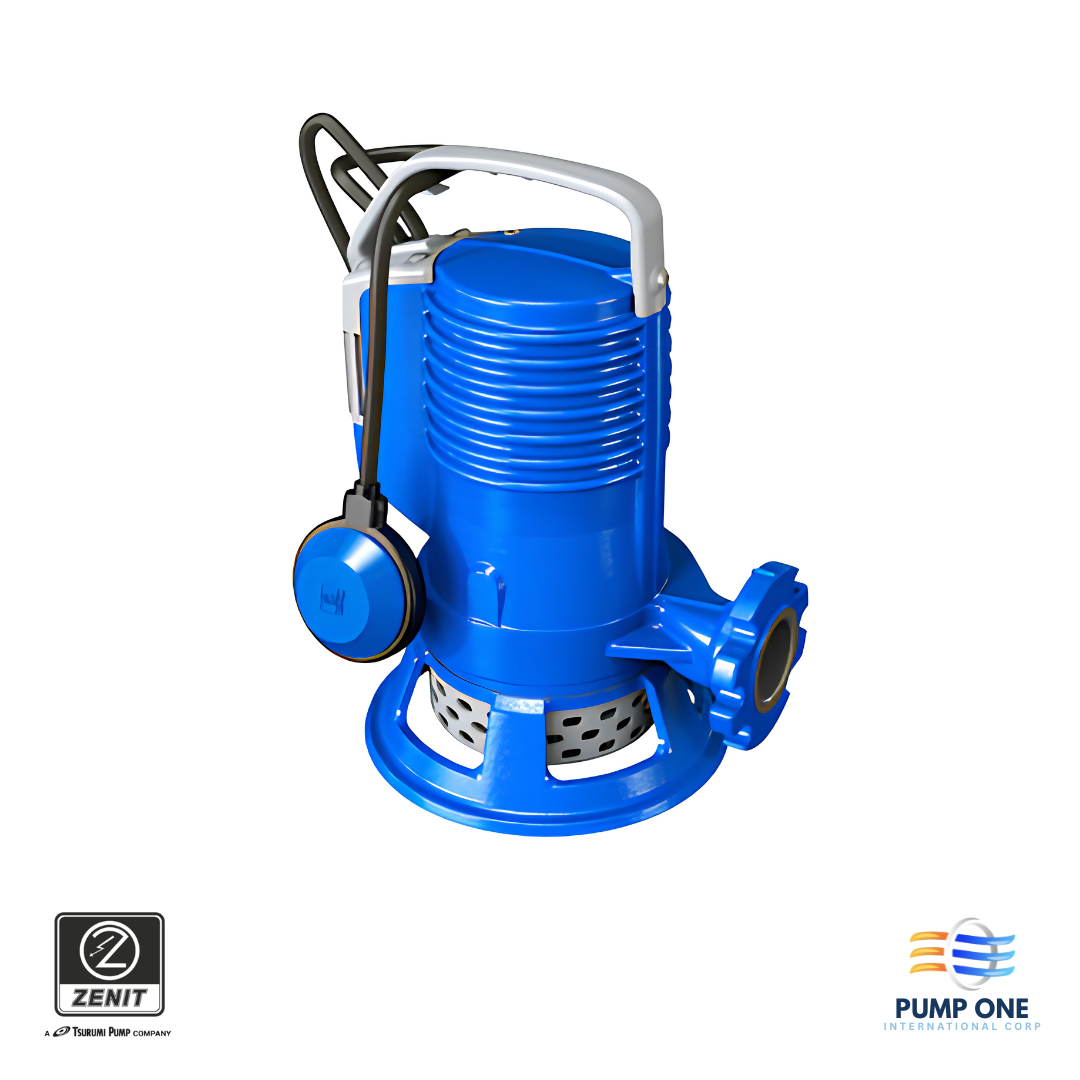

Zenit bluePRO Series AP Alta Prevalenza Electric Submersible Pump

Model: AP bluePRO

The Zenit bluePRO AP Series Electric Submersible Pump is specifically designed for applications requiring high discharge pressure and superior hydraulic performance. Equipped with a cast iron multi-channel open impeller, it efficiently pumps clean water, slightly sandy seepage water, and liquids containing small suspended particles. Its high-head design makes it ideal for fountains, water features, construction sites, pressure boosting, and installations where greater lifting capability is required.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 26.3
Max Head (m)	Max: 27.3
Motor Power (kW)	0.74 – 1.5
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	32 – 40
Liquid Type	Clean Water
Max Solid Size (mm)	Max: 6
Float Switch	Optional
Casing Material	Cast Iron

Product Description

Features
• Cast iron multi-channel open impeller
• High-head hydraulic design
• Heavy-duty cast iron construction
• Double mechanical seal in oil chamber
• Suitable for continuous-duty operation
• Ideal for clean and slightly sandy water
• Vertical discharge with automatic priming breather
• Factory pressure-tested
• Compatible with blueBOX lifting stations
• Optional IECEx-certified versions available
