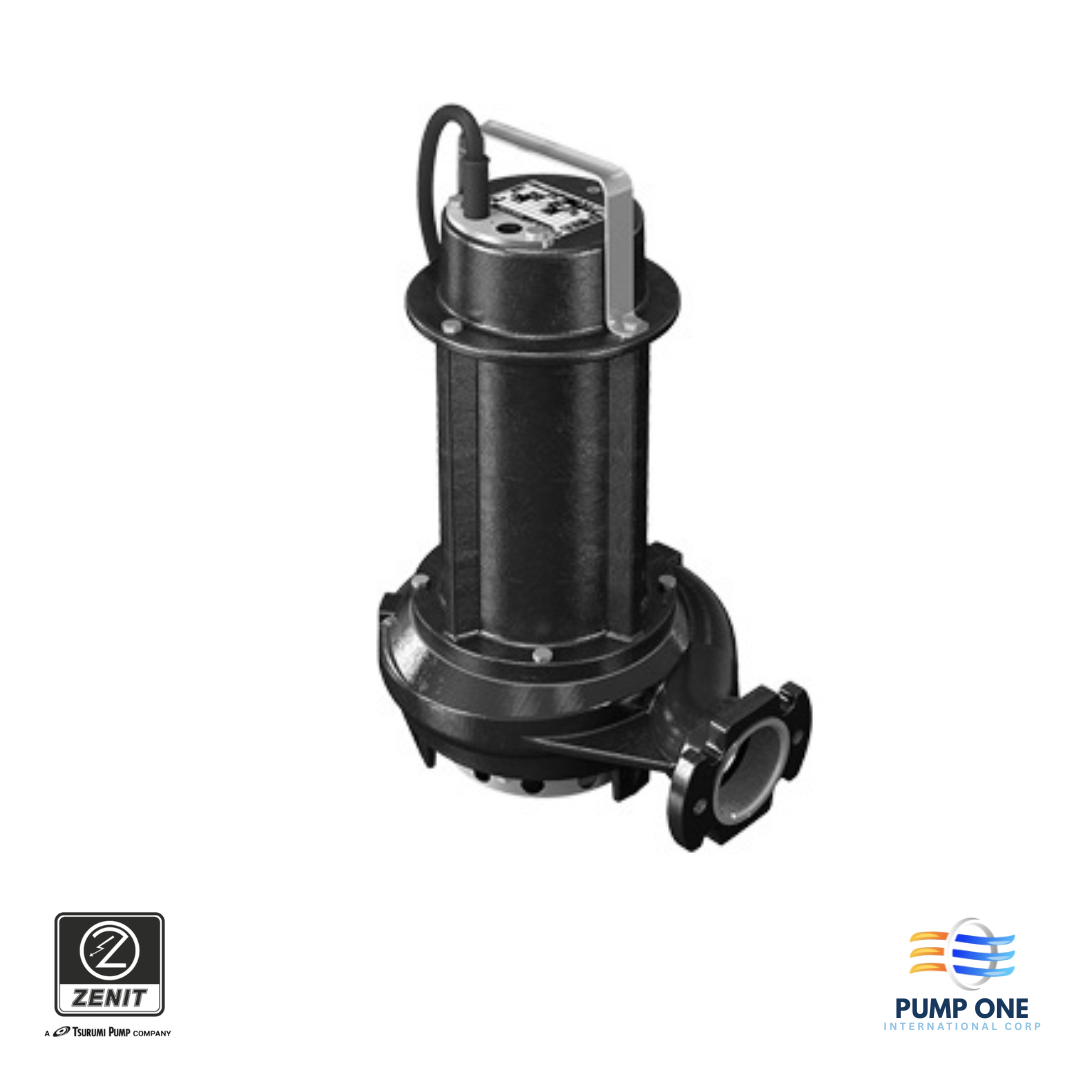

Zenit E Series APE Alta Prevalenza Electric Submersible Pump

The Zenit E Series APE Electric Submersible Pump is a compact high-head pump designed for lifting clean water and slightly sandy water where increased discharge pressure is required. Featuring a cast iron multi-channel open impeller and stainless steel suction strainer, it provides efficient hydraulic performance for irrigation systems, fish farming, and water transfer applications. Its compact construction allows installation in confined lifting stations while ensuring reliable long-term operation.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 34.9
Max Head (m)	Max: 25.1
Motor Power (kW)	Min: 1.7
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	Max: 50
Liquid Type	Clean Water
Max Solid Size (mm)	Max: 7
Float Switch	Optional
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• High-head hydraulic design
• Cast iron multi-channel open impeller
• Stainless steel suction strainer
• Heavy-duty cast iron construction
• Compact installation
• Pressure-tested construction
