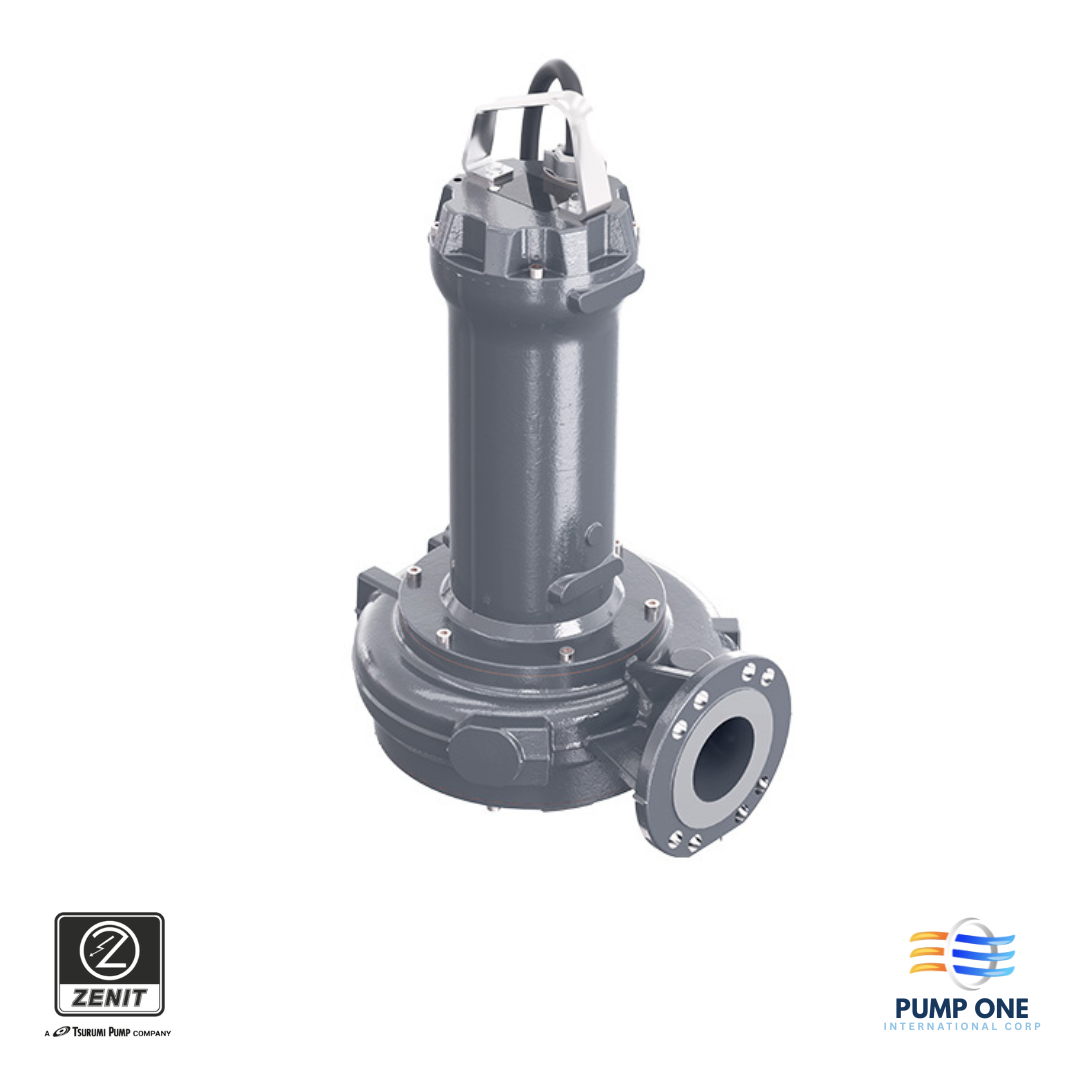

Zenit Grey Series CTG Chopper Electric Submersible Pump

The Zenit Grey Series CTG Electric Submersible Pump is equipped with an advanced Cutting System integrated into a cast iron GJS-600 channel impeller. Designed to cut solid waste and shred fibrous materials before pumping, the CTG Series minimizes clogging while maintaining excellent hydraulic performance. Ideal for civil, industrial, and agricultural wastewater applications, the pump delivers dependable continuous-duty operation with high discharge pressure and efficient solids handling.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 271.8
Max Head (m)	Max: 33.4
Motor Power (kW)	2.2 – 15
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	80 – 100
Max Solid Size (mm)	Max: 44
Float Switch	Not Included
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• GJS-600 cast iron channel impeller
• Integrated cutting system
• Large free passage
• High manometric head
• Continuous-duty construction
• Ideal for fibrous wastewater
• ATEX & IECEx versions available
