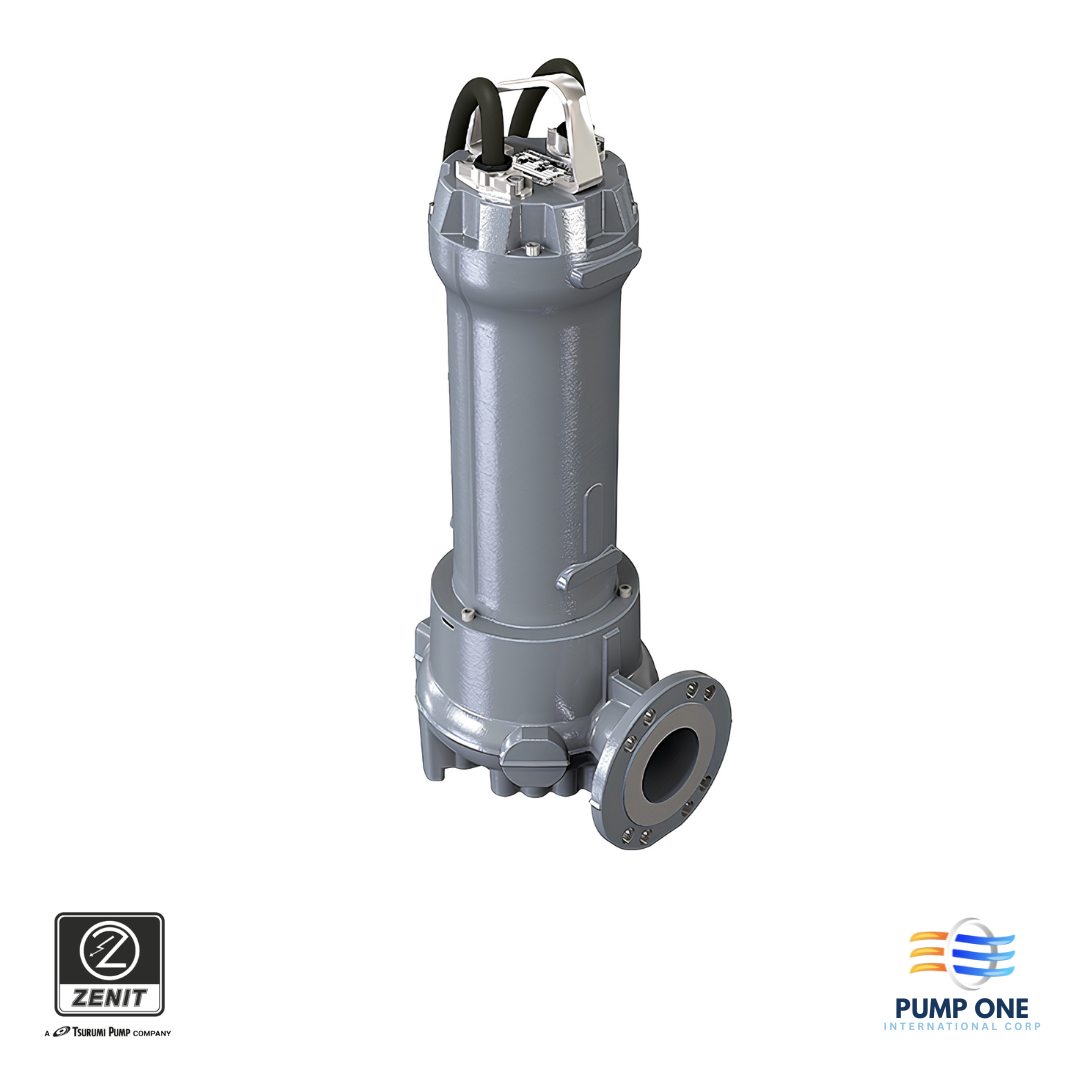

Zenit Grey Series DGG Draga Electric Submersible Pump

The Zenit Grey Series DGG Electric Submersible Pump is designed for handling biological liquids, wastewater, and sewage containing large suspended solids. Featuring a cast iron vortex impeller with full free passage, it minimizes clogging while delivering reliable hydraulic performance in civil, industrial, and agricultural applications. The Grey Series incorporates redesigned hydraulics and high-efficiency motors to provide lower energy consumption, greater reliability, and simplified maintenance. Optional ATEX and IECEx certified versions are available for hazardous environments.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 380.2
Max Head (m)	Max: 24.5
Motor Power (kW)	0.55 – 15
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	40 – 150
Max Solid Size (mm)	Max: 125
Float Switch	Optional
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• Cast iron vortex impeller
• Full free solids passage
• Redesigned high-efficiency hydraulics
• Heavy-duty cast iron construction
• Continuous-duty operation
• Ideal for sewage and wastewater
• ATEX & IECEx versions available
