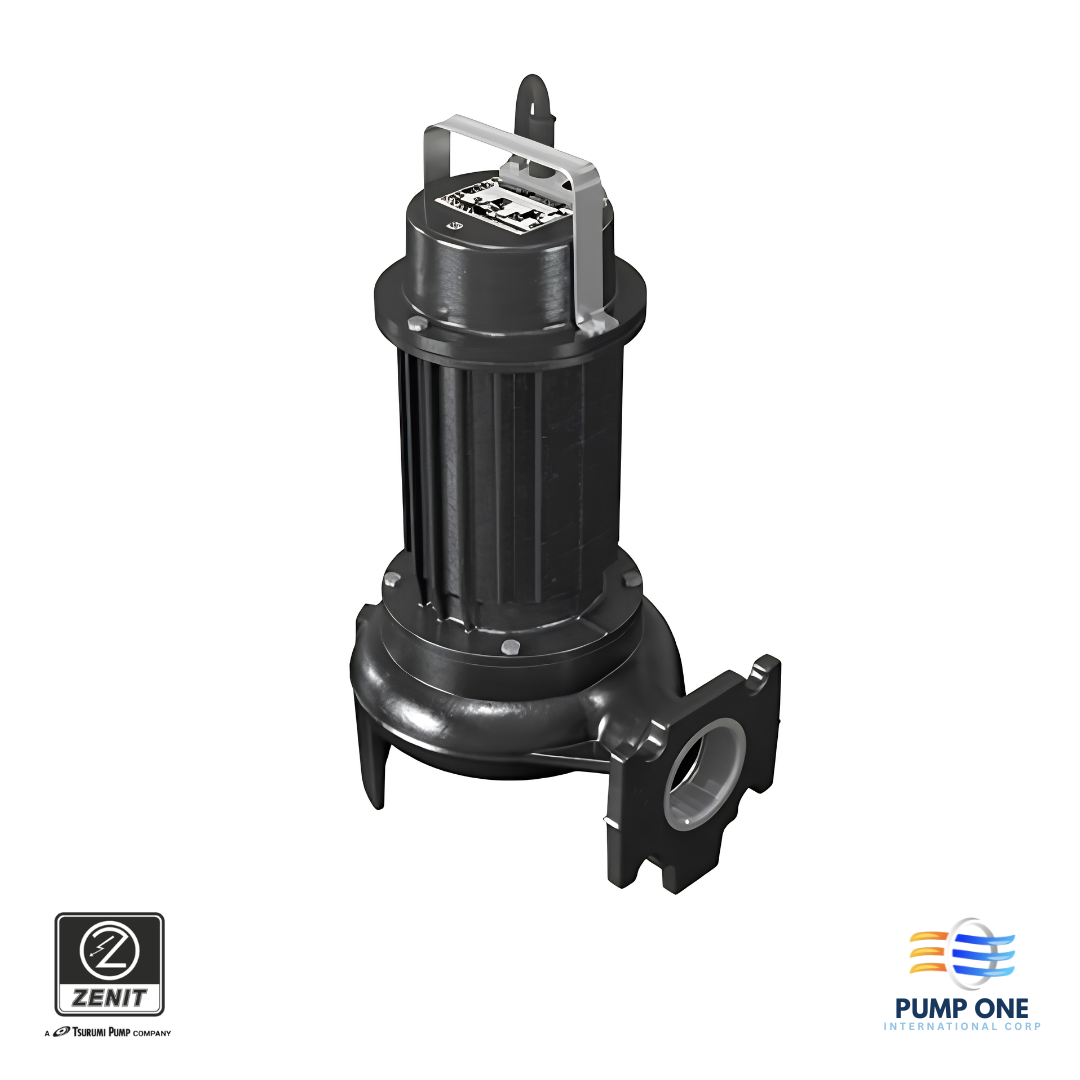

Zenit O Series DGO Draga Electric Submersible Pump

The Zenit O Series DGO Electric Submersible Pump is a robust cast iron sewage pump equipped with an oil-bath motor for superior reliability in demanding wastewater applications. Its cast iron vortex impeller provides a full free solids passage of up to 80 mm, making it ideal for sewage, heavily soiled wastewater, and liquids containing large suspended solids.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 58.7
Max Head (m)	Max: 17.5
Motor Power (kW)	0.37 – 1.5
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	40 – 65
Max Solid Size (mm)	Max: 80
Float Switch	Optional
Casing Material	Cast Iron

Product Description

Features
• Oil-bath motor for reliable continuous operation
• Cast iron vortex impeller
• Full free solids passage up to 80 mm
• Heavy-duty cast iron construction
• Double mechanical seal
• Easy maintenance design
• Suitable for permanent installations
• Factory pressure-tested
• Ideal for demanding wastewater applications
