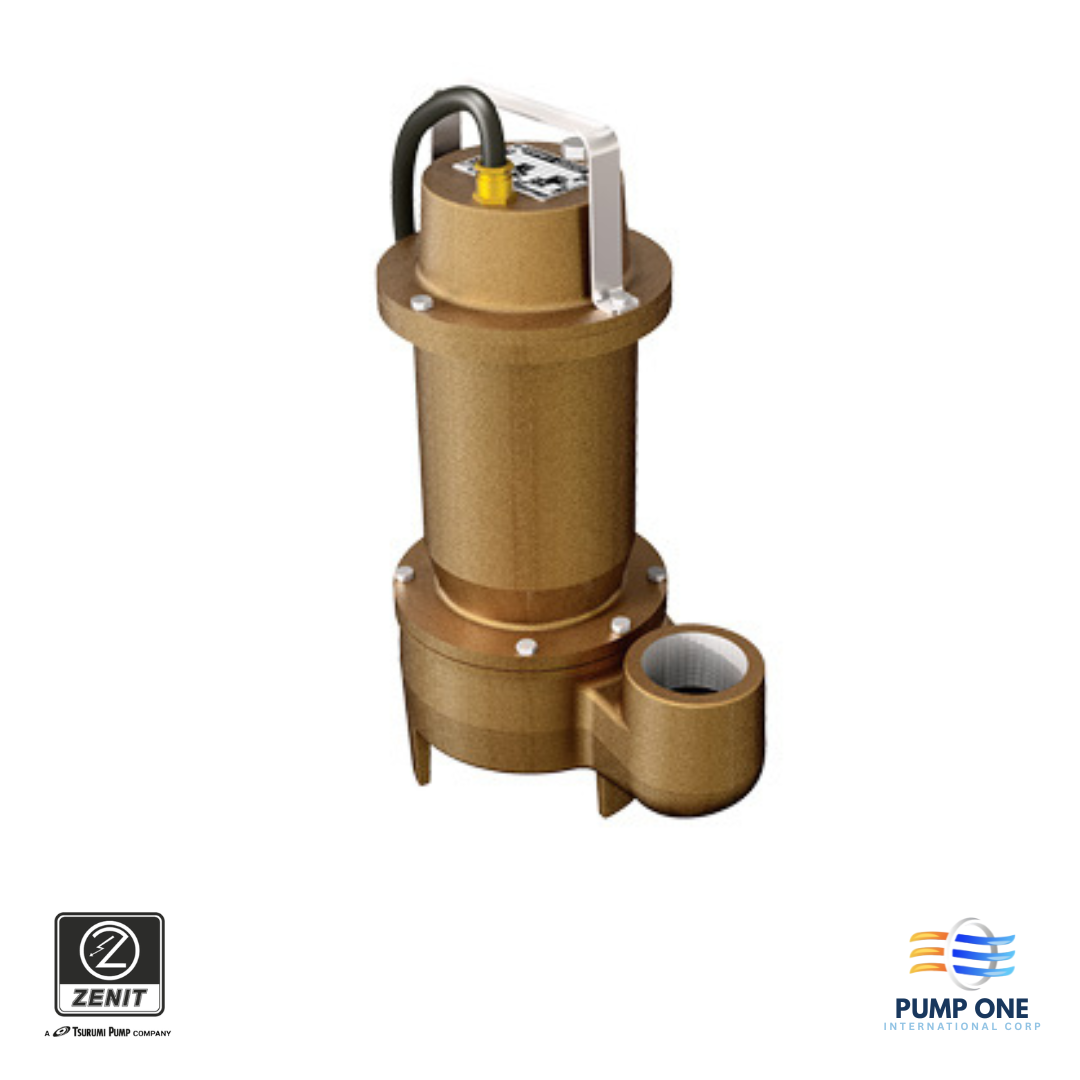

Zenit Special Alloy Series DGB Draga Electric Submersible Pump

The Zenit Special Alloy Series DGB Electric Submersible Pump is designed for pumping corrosive liquids, seawater, brine, and aggressive wastewater. Constructed with an aluminum-bronze vortex impeller and an oil-bath motor, it delivers exceptional corrosion resistance and continuous-duty performance in harsh environments. The dual mechanical seal, lubricated and cooled by motor oil, provides excellent reliability while the large free passage minimizes clogging when handling solids. Ideal for chemical plants, fish processing facilities, marine installations, and shipping industries.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 38.9
Max Head (m)	Max: 14.6
Motor Power (kW)	0.37 – 1.5
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	Max: 50
Max Solid Size (mm)	Max: 38
Float Switch	Optional
Installation	Fixed / Guide Rail
Application	Industrial
Casing Material	Aluminum Bronze

Product Description

Features
• Aluminum-bronze vortex impeller
• Oil-bath motor
• Dual mechanical seal in oil chamber
• Corrosion-resistant construction
• Large free solids passage
• Continuous-duty operation
• Ideal for seawater and brine
