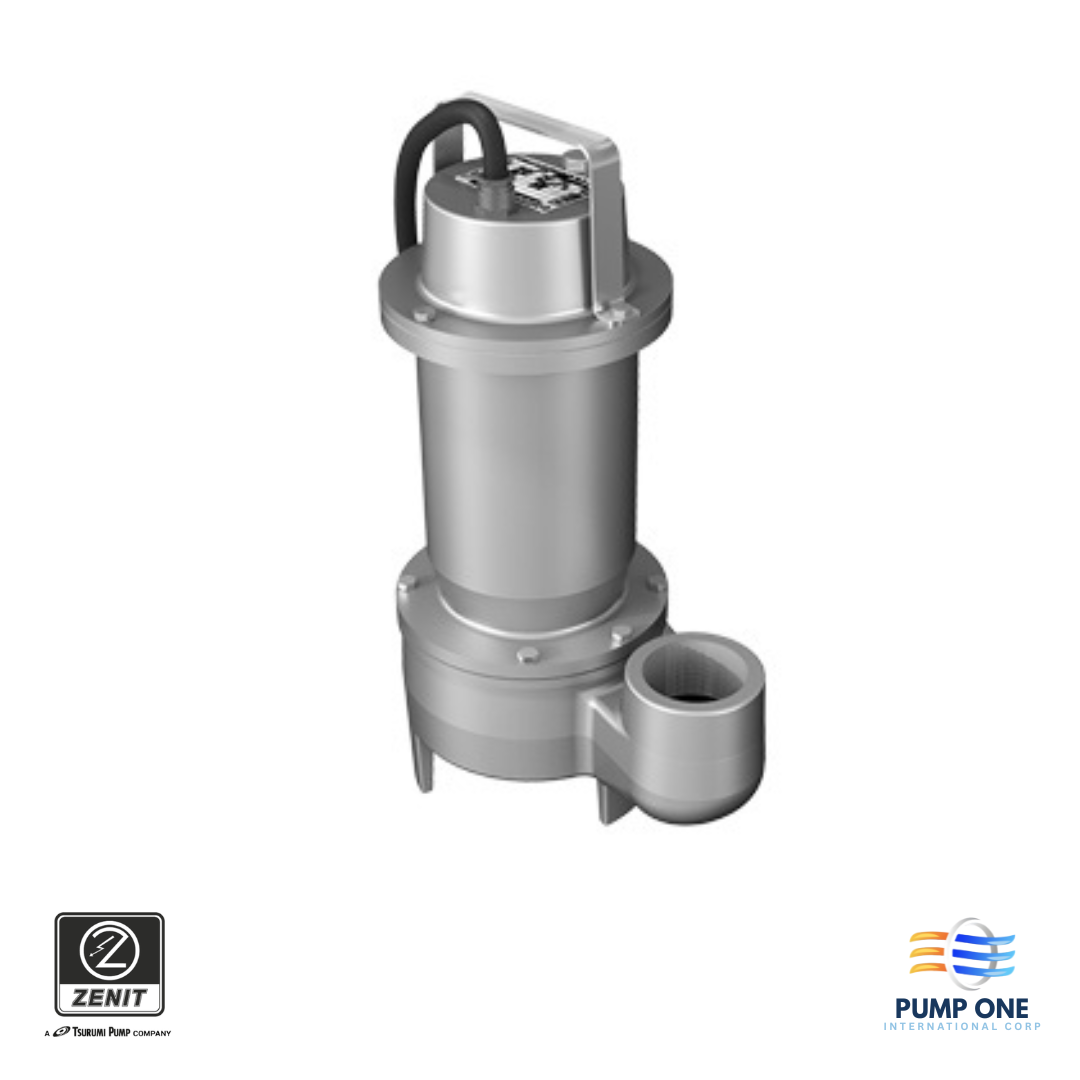

Zenit Special Alloy Series DGX Draga Electric Submersible Pump

The Zenit Special Alloy Series DGX Electric Submersible Pump is manufactured from ASTM A351 CF8M (AISI 316) stainless steel and features a stainless steel vortex impeller for pumping highly corrosive wastewater and aggressive liquids containing solids. Its oil-bath motor and dual mechanical seal ensure reliable continuous-duty operation even in severe industrial environments. Designed for chemical plants, pharmaceutical facilities, and marine installations requiring superior corrosion resistance.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 67.7
Max Head (m)	Max: 14.4
Motor Power (kW)	0.37 – 1.5
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	50 – 80
Max Solid Size (mm)	Max: 60
Float Switch	Optional
Installation	Fixed / Guide Rail
Application	Industrial

Product Description

Features
• AISI 316 stainless steel construction
• Stainless steel vortex impeller
• Oil-bath motor
• Dual mechanical seal
• Large free solids passage
• Excellent corrosion resistance
• Continuous-duty operation
