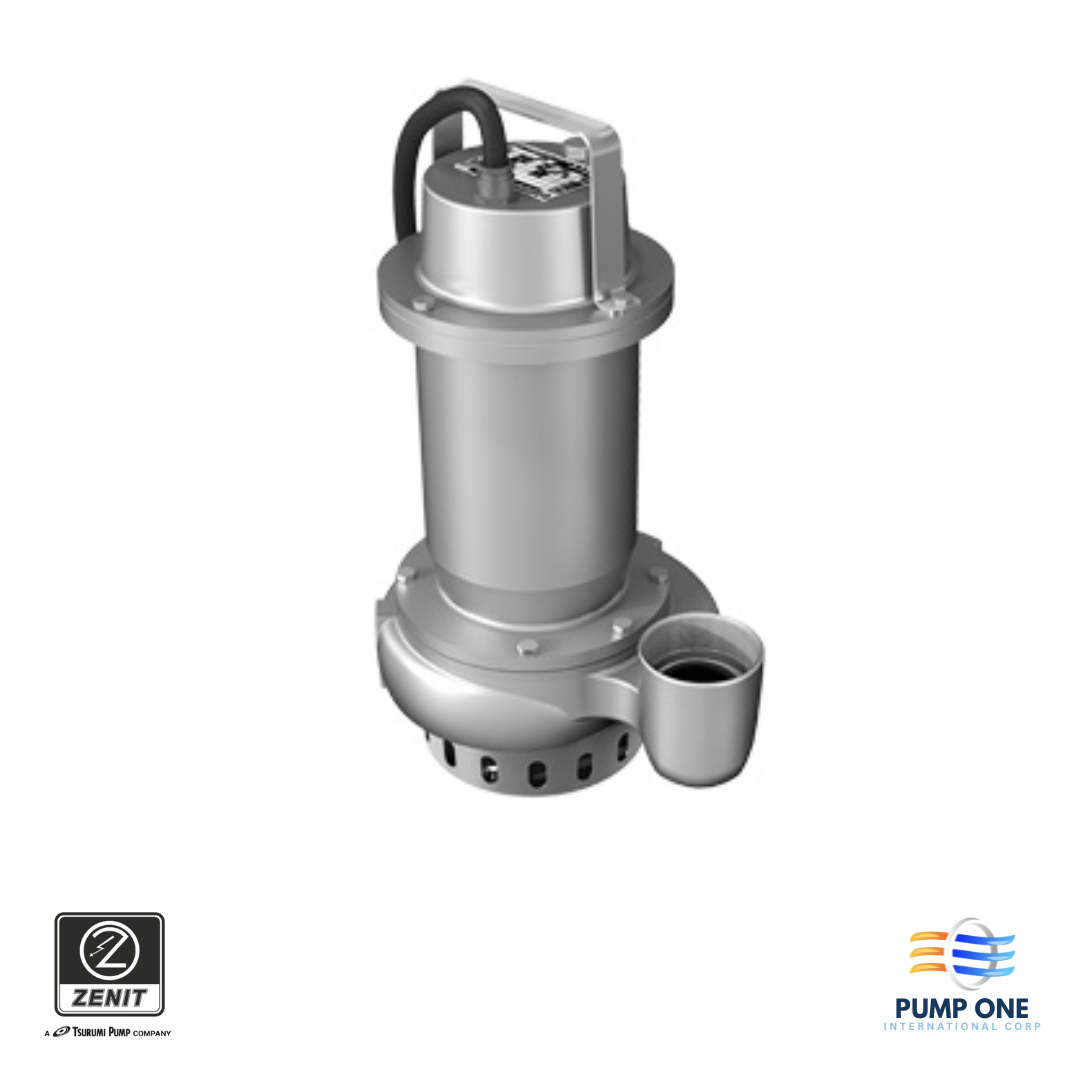

Zenit Special Alloy Series DRX Dreno Electric Submersible Pump

The Zenit Special Alloy Series DRX Electric Submersible Pump is constructed from ASTM A351 CF8M (AISI 316) stainless steel and fitted with a stainless steel multi-channel open impeller and stainless steel suction strainer. Designed for strained corrosive liquids, seawater, and aggressive industrial fluids, it combines excellent corrosion resistance with reliable hydraulic efficiency. The oil-bath motor and dual mechanical seal provide dependable continuous operation in chemical, pharmaceutical, and marine environments.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 46.1
Max Head (m)	Max: 18.2
Motor Power (kW)	0.37 – 1.5
Voltage (VAC)	220-240 / 380-400
Outlet Diameter (mm)	32 – 50
Max Solid Size (mm)	Max: 15
Float Switch	Optional
Installation	Fixed / Guide Rail
Application	Industrial
Casing Material	Stainless Steel (AISI 316)

Product Description

Features
• AISI 316 stainless steel construction
• Stainless steel multi-channel impeller
• Stainless steel suction strainer
• Oil-bath motor
• Dual mechanical seal
• Continuous-duty design
