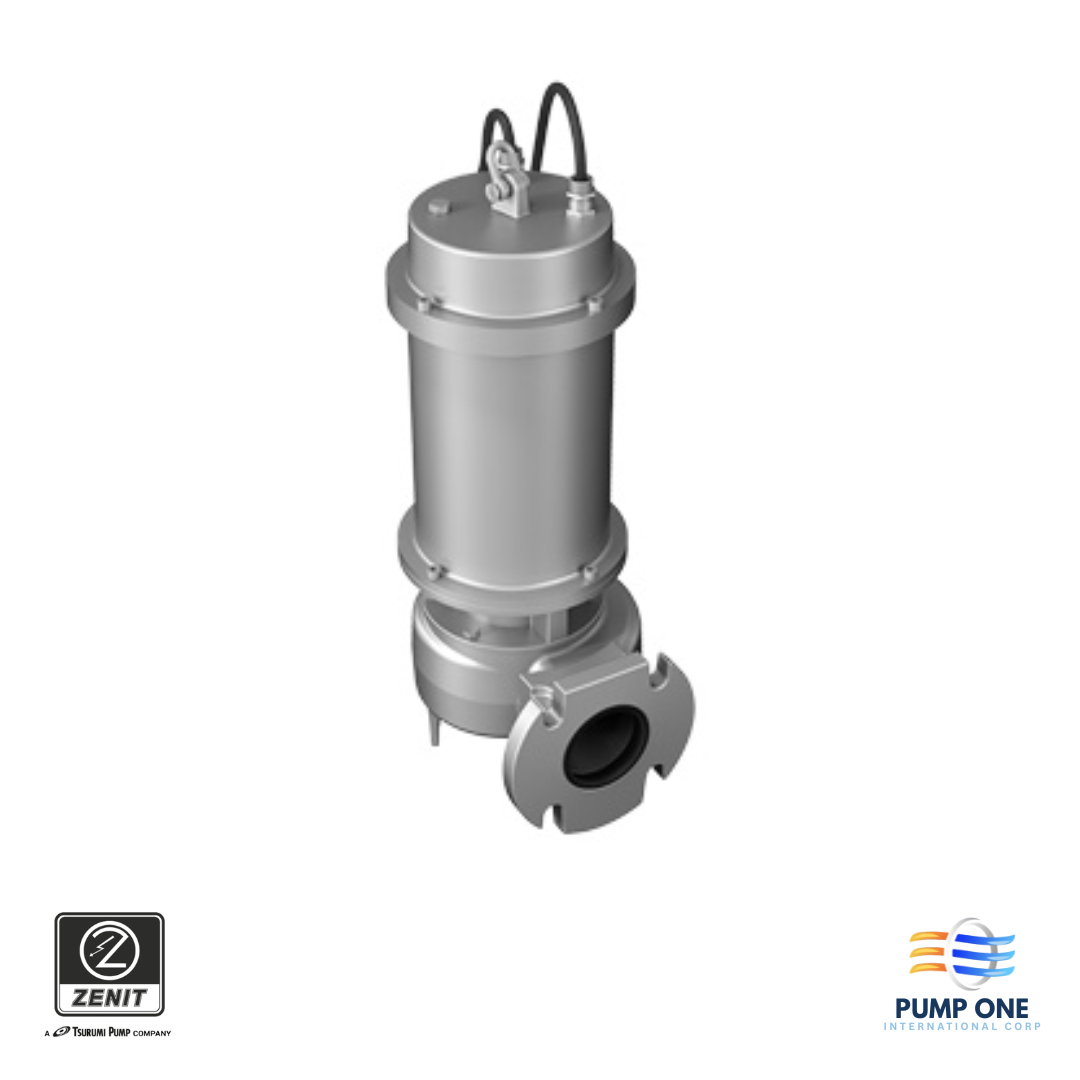

Zenit Special Alloy Series DRY Dreno Electric Submersible Pump

The Zenit Special Alloy Series DRY Electric Submersible Pump is engineered for demanding industrial environments handling highly corrosive or aggressive wastewater containing solids. Constructed from ASTM A351 CF8M (AISI 316) stainless steel, it features a large free-passage multi-channel impeller, oil-bath motor, and dual mechanical seal for maximum reliability during continuous-duty operation. Ideal for chemical processing plants, pharmaceutical manufacturing, seawater handling, and other industrial applications requiring exceptional corrosion resistance.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 262.1
Max Head (m)	Max: 38.3
Motor Power (kW)	2.4 – 15
Voltage (VAC)	380-400
Outlet Diameter (mm)	65 – 100
Max Solid Size (mm)	Max: 80
Float Switch	Not Included
Application	Industrial
Casing Material	Stainless Steel (AISI 316)

Product Description

Features
• AISI 316 stainless steel construction
• Large free-passage multi-channel impeller
• Oil-bath motor
• Dual mechanical seal
• Heavy-duty industrial design
• Continuous-duty operation
• Excellent resistance to corrosive chemicals
