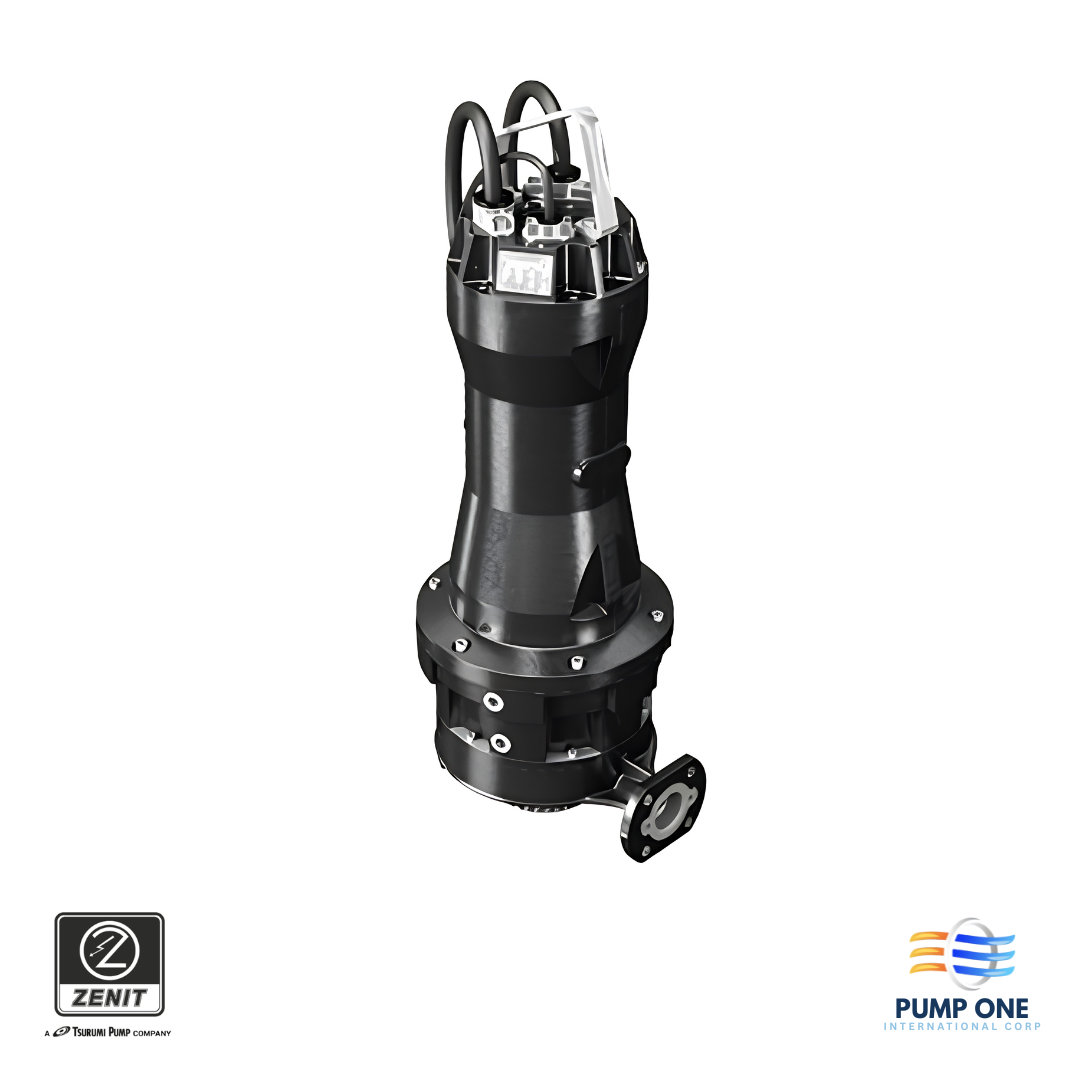

Zenit UNIQA Series ZUG HP High Head Electric Submersible Pump

The Zenit UNIQA ZUG HP Series Electric Submersible Pump is engineered for applications requiring exceptional pressure and hydraulic performance. Equipped with a cast iron multi-channel open impeller and a Premium Efficiency IE3 motor, it is ideal for pumping clean water, rainwater, seepage water, and lightly contaminated liquids. Designed for agriculture, irrigation systems, fish farming, and industrial water transfer, the ZUG HP Series combines energy-efficient operation with rugged cast iron construction and dependable long-term reliability.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 42.1
Max Head (m)	Max: 64.5
Motor Power (kW)	7.5 – 15
Voltage (VAC)	380-400
Outlet Diameter (mm)	Max: 50
Liquid Type	Clean Water
Max Solid Size (mm)	Max: 7.5
Float Switch	Not Included
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• Premium Efficiency IE3 motor
• High-head hydraulic design
• Cast iron multi-channel impeller
• Heavy-duty cast iron construction
• Continuous-duty operation
• Ideal for irrigation and water transfer
• WET and DRY installation versions
• ATEX & IECEx certified models available
