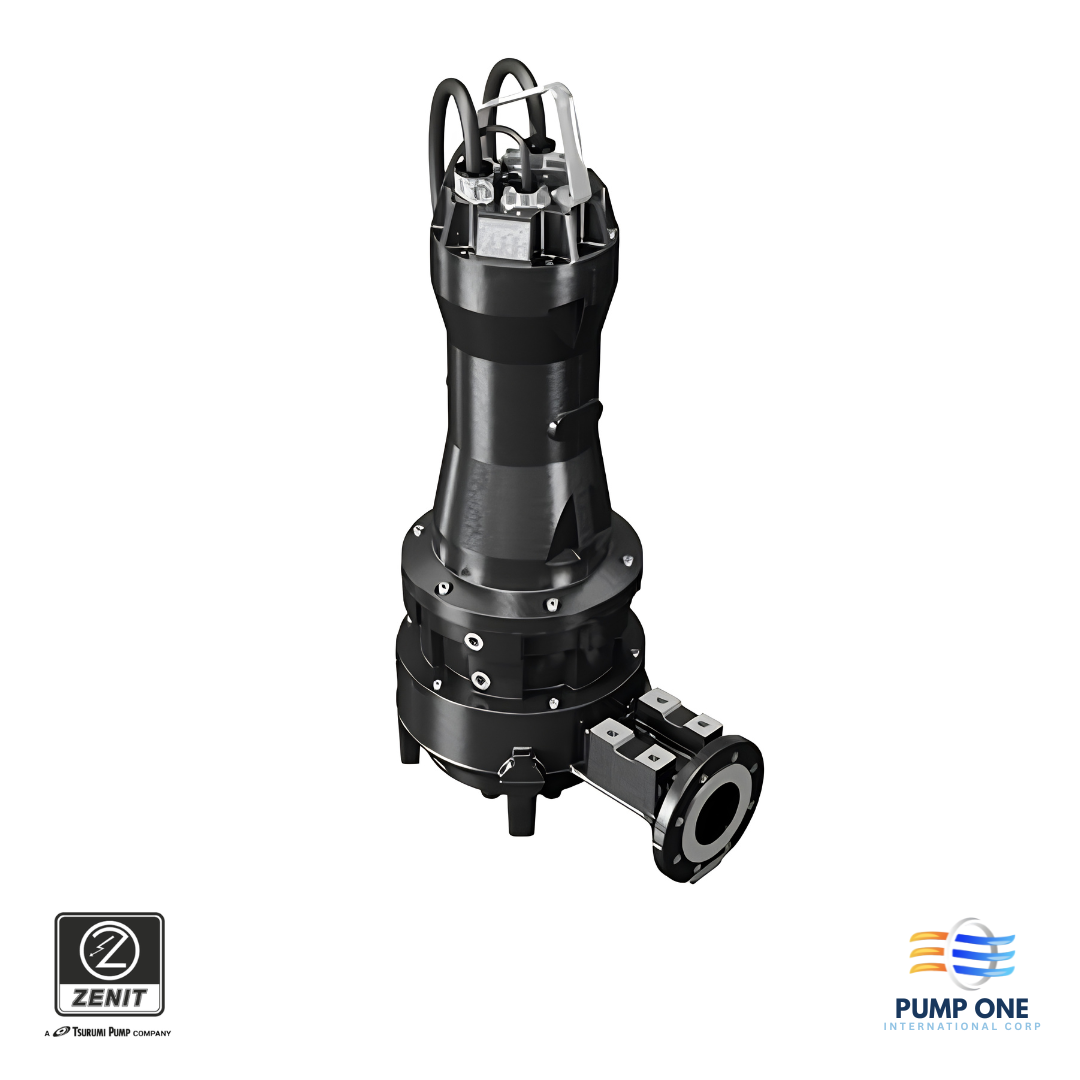

Zenit UNIQA Series ZUG OC Open Channel Electric Submersible Pump

The Zenit UNIQA ZUG OC Series Electric Submersible Pump combines a Premium Efficiency IE3 motor with an advanced cast iron open-channel impeller incorporating anti-clogging and anti-fouling technology. Designed for municipal wastewater treatment, drainage systems, and first-flush stormwater tanks, the ZUG OC Series provides outstanding hydraulic efficiency while handling large suspended solids. Its robust cast iron construction, extensive hydraulic range, and optional WET or DRY installation make it suitable for the most demanding professional pumping applications.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 4464
Max Head (m)	Max: 100.3
Motor Power (kW)	1.1 – 250
Voltage (VAC)	380-400
Outlet Diameter (mm)	65 – 500
Float Switch	Not Included
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• Premium Efficiency IE3 motor
• Cast iron open-channel impeller
• Anti-clogging & anti-fouling hydraulic design
• Large free solids passage
• Heavy-duty cast iron construction
• WET and DRY versions
• ATEX & IECEx certified models available
