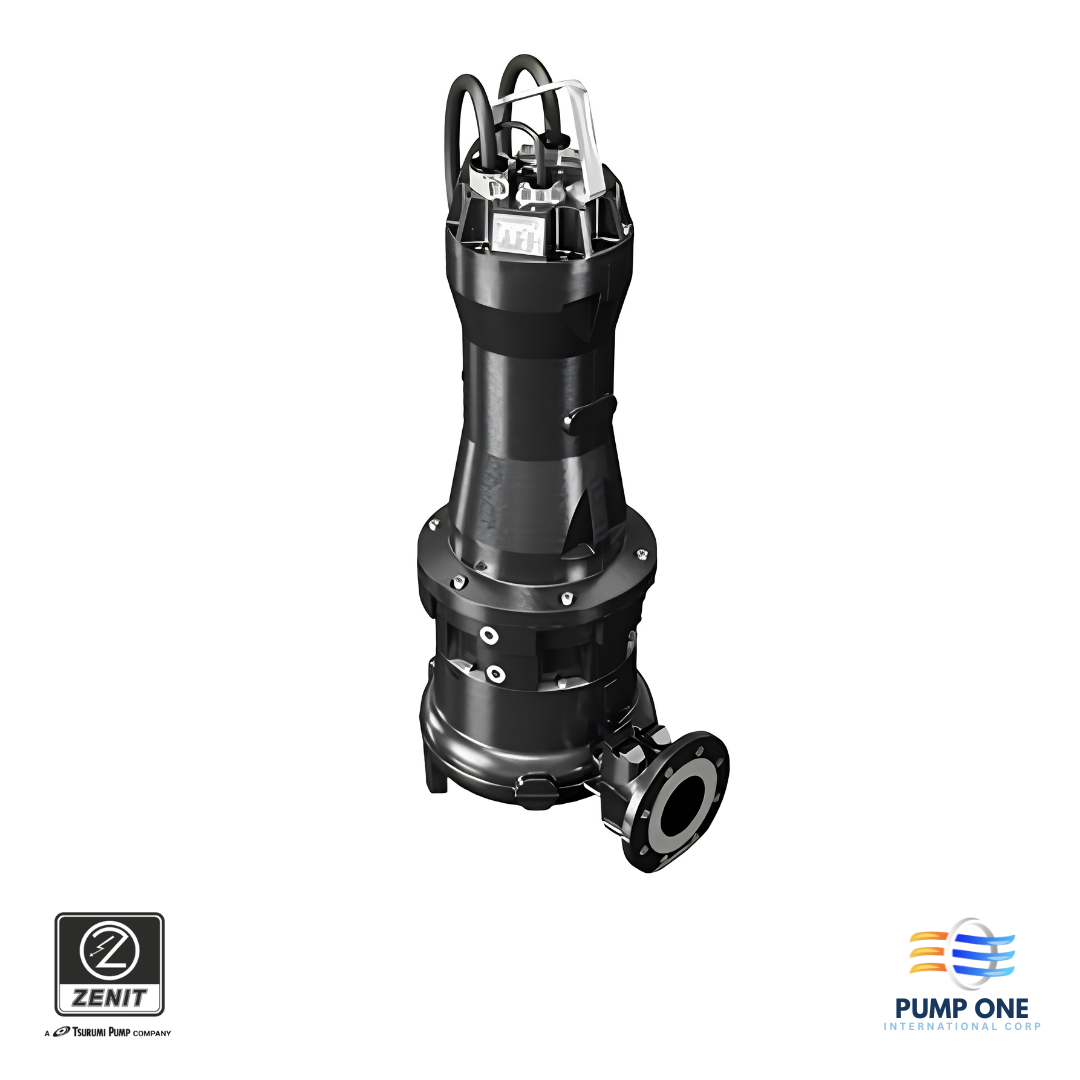

Zenit UNIQA Series ZUG V Vortex Electric Submersible Pump

The Zenit UNIQA ZUG V Series Electric Submersible Pump is a professional-grade wastewater pump designed for continuous-duty municipal, industrial, and agricultural applications. Equipped with a cast iron vortex impeller providing a full free passage up to 150 mm, it efficiently pumps sewage, biological wastewater, and liquids containing large suspended solids while minimizing the risk of clogging. Powered by a Premium Efficiency IE3 motor, the ZUG V Series delivers high hydraulic performance with reduced energy consumption. Available in both WET and DRY configurations, it is suitable for submerged or dry chamber installations and can be supplied with ATEX and IECEx certifications for hazardous environments.

Email Inquiry Call Us

Specifications

Flow Rate (m³/h)	1 – 388.4
Max Head (m)	Max: 79.2
Motor Power (kW)	3 – 45
Voltage (VAC)	380-400
Outlet Diameter (mm)	65 – 150
Max Solid Size (mm)	Max: 150
Float Switch	Not Included
Installation	Fixed / Guide Rail
Casing Material	Cast Iron

Product Description

Features
• Premium Efficiency IE3 motor
• Cast iron vortex impeller
• Full free solids passage up to 150 mm
• Heavy-duty cast iron construction
• WET and DRY installation versions
• Continuous-duty operation
• High energy efficiency
• ATEX & IECEx versions available
